Pick and Place Example

Learning Objectives

After completing this tutorial, you will have learned:

• How to control gripper open/close operations
• Target following using the Lula Kinematics Solver (Inverse Kinematics)
• Configuring and running RMPFlow motion control
• Implementing a pick and place task

Getting Started

Prerequisites

• Tutorial 8: Generate Robot Configuration Files completed
• The following files created in Tutorials 7-8 should be available:
  • USD asset (ur_gripper.usd) — Created in Tutorial 7
  • URDF file (ur_gripper.urdf) — Generated in Tutorial 8 Step 1
  • Lula robot description file (ur10e.yaml) — Generated in Tutorial 8 Step 5

Estimated Time

Approximately 30-40 minutes

Overview

In the previous tutorials, you set up the UR10e robot arm and Robotiq 2F-140 gripper and generated configuration files (URDF, robot description YAML) for kinematics solvers.

In this tutorial, you will use these artifacts to create Python scripts in your own project directory to control the robot. We will proceed step by step through the following 5 steps:

1. Project Setup — Directory structure and configuration file placement
2. Gripper Control — Basics of controlling gripper open/close
3. Follow Target with IK Solver — Move the end-effector to a target position using inverse kinematics
4. Follow Target with RMPFlow — Smooth motion control including obstacle avoidance
5. Pick and Place Task — Combine everything for object grasping and placement

Bundled samples are available for reference

Isaac Sim includes complete sample code equivalent to this tutorial. If you get stuck or want to verify behavior, refer to the scripts at the following path:

standalone_examples/api/isaacsim.robot.manipulators/ur10e/

How to run:

./python.sh standalone_examples/api/isaacsim.robot.manipulators/ur10e/<script_name>.py

Step 1: Project Setup

1-1. Directory Structure

Create a project directory at any location and organize files as shown below. Here we use ur10e_pick_place as the example directory name:

ur10e_pick_place/
├── ur_gripper.usd                      # USD asset from Tutorial 7 (placed via Save As)
├── gripper_control.py                  # Created in Step 2
├── follow_target_example.py            # Created in Step 3
├── follow_target_example_rmpflow.py    # Created in Step 4
├── pick_place_example.py               # Created in Step 5
├── controllers/
│   ├── __init__.py                     # Empty file
│   ├── ik_solver.py                    # Created in Step 3
│   ├── rmpflow.py                      # Created in Step 4
│   └── pick_place.py                   # Created in Step 5
├── tasks/
│   ├── __init__.py                     # Empty file
│   ├── follow_target.py                # Created in Step 3
│   └── pick_place.py                   # Created in Step 5
└── rmpflow/
    ├── ur10e.yaml                       # Copy Lula robot description file generated in Tutorial 8
    ├── ur_gripper.urdf                   # Copy URDF file generated in Tutorial 8
    └── ur10e_rmpflow_common.yaml       # Created in Step 4

1-2. Placing the USD Asset

The ur_gripper.usd created in Tutorial 7 references other files (Physics Layer, mesh files, etc.) via relative paths. Simply copying the file will cause the robot to fail to load because the referenced files cannot be found.

Use Isaac Sim's Save As function to save a new USD file with correctly resolved reference paths in the project directory:

1. Open ur_gripper.usd in Isaac Sim

2. In the Stage panel, set the Target Position for the following joints:

   Joint	Target Position	Description
   shoulder_lift_joint	-10.0 deg	Tilt the shoulder slightly upward
   elbow_joint	10.0 deg	Bend the elbow slightly upward

   This prevents the robot's elbow from bending toward the ground when the simulation starts.

   Incorporating the ground plane into motion planning

   RMPFlow provides an API method rmpflow.add_ground_plane() that adds the ground plane to the collision world so the motion planner can automatically avoid it. However, as of Isaac Sim 5.1.0, this API does not produce the expected ground avoidance behavior. Therefore, this tutorial uses initial joint angle settings as a workaround.

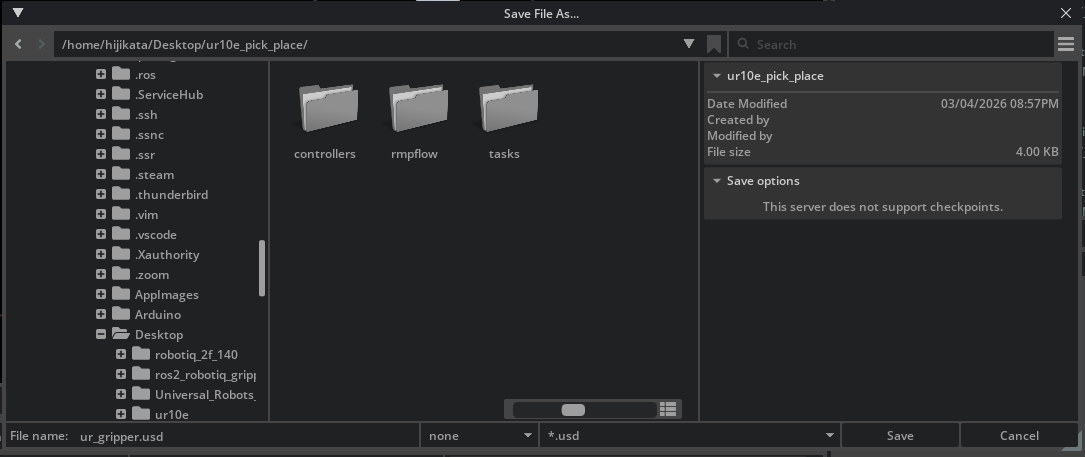

3. Select File > Save As... from the menu

4. Set the save location to your project directory (ur10e_pick_place/) and save with the filename ur_gripper.usd



When using Save As, the relative paths to referenced files (such as Physics Layers) are automatically updated to match the new save location.

Do not simply copy the file

If you copy ur_gripper.usd using a file manager or command, the internal relative path references will break and the robot's prim hierarchy will not load, resulting in errors like:

Pattern '/ur10e' did not match any rigid bodies

1-3. Placing Other Files

Copy the following files created in Tutorial 8 to the project directory:

• ur10e.yaml — Robot description file exported from Lula Robot Description Editor (place in rmpflow/)
• ur_gripper.urdf — URDF file generated by USD to URDF Exporter (place in rmpflow/)

LinuxWindows (PowerShell)

mkdir -p ur10e_pick_place/rmpflow
mkdir -p ur10e_pick_place/controllers
mkdir -p ur10e_pick_place/tasks
touch ur10e_pick_place/controllers/__init__.py
touch ur10e_pick_place/tasks/__init__.py

# Copy files created in Tutorial 8 (adjust paths to your environment)
cp /path/to/your/ur10e.yaml ur10e_pick_place/rmpflow/
cp /path/to/your/ur_gripper.urdf ur10e_pick_place/rmpflow/

New-Item -ItemType Directory -Force ur10e_pick_place\rmpflow
New-Item -ItemType Directory -Force ur10e_pick_place\controllers
New-Item -ItemType Directory -Force ur10e_pick_place\tasks
New-Item -ItemType File -Force ur10e_pick_place\controllers\__init__.py
New-Item -ItemType File -Force ur10e_pick_place\tasks\__init__.py

# Copy files created in Tutorial 8 (adjust paths to your environment)
Copy-Item C:\path\to\your\ur10e.yaml ur10e_pick_place\rmpflow\
Copy-Item C:\path\to\your\ur_gripper.urdf ur10e_pick_place\rmpflow\

About code examples below

The code examples below use os.path.dirname(__file__) to reference ur_gripper.usd via a relative path from the current script. By placing the USD asset in the project root, the path is fixed and does not depend on the environment.

1-4. How to Run Scripts

Run the tutorial scripts using the Isaac Sim Python environment as follows:

LinuxWindows (PowerShell)

./python.sh /path/to/ur10e_pick_place/<script_name>.py

.\python.bat C:\path\to\ur10e_pick_place\<script_name>.py

Step 2: Gripper Control

As the first step, learn how to control gripper open/close operations. This is the most basic operation for manipulation tasks.

2-1. Creating the Script

Create gripper_control.py:

from isaacsim import SimulationApp

simulation_app = SimulationApp({"headless": False})

import os

import numpy as np
from isaacsim.core.api import World
from isaacsim.core.utils.stage import add_reference_to_stage
from isaacsim.core.utils.types import ArticulationAction
from isaacsim.robot.manipulators import SingleManipulator
from isaacsim.robot.manipulators.grippers import ParallelGripper

my_world = World(stage_units_in_meters=1.0)

# --- Load asset ---
asset_path = os.path.join(os.path.dirname(os.path.abspath(__file__)), "ur_gripper.usd")
add_reference_to_stage(usd_path=asset_path, prim_path="/ur10e")

# --- Debug: Display prim hierarchy in the stage ---
import omni.usd
stage = omni.usd.get_context().get_stage()
for prim in stage.Traverse():
    print(prim.GetPath())

# --- Define gripper ---
gripper = ParallelGripper(
    end_effector_prim_path="/ur10e/ee_link/robotiq_140_base_link",
    # If using existing assets:
    # end_effector_prim_path="/ur10e/ee_link/robotiq_arg2f_base_link",
    joint_prim_names=["finger_joint"],
    joint_opened_positions=np.array([0]),
    joint_closed_positions=np.array([40]),
    action_deltas=np.array([-40]),
    use_mimic_joints=True,
)

# --- Define manipulator ---
my_ur10 = my_world.scene.add(
    SingleManipulator(
        prim_path="/ur10e",
        name="ur10_robot",
        end_effector_prim_path="/ur10e/ee_link/robotiq_140_base_link",
        # If using existing assets:
        # end_effector_prim_path="/ur10e/ee_link/robotiq_arg2f_base_link",
        gripper=gripper,
    )
)

my_world.scene.add_default_ground_plane()
my_world.reset()

# --- Simulation loop ---
i = 0
reset_needed = False
while simulation_app.is_running():
    my_world.step(render=True)
    if my_world.is_stopped() and not reset_needed:
        reset_needed = True
    if my_world.is_playing():
        if reset_needed:
            my_world.reset()
            reset_needed = False
        i += 1
        gripper_positions = my_ur10.gripper.get_joint_positions()
        if i < 400:
            # Slowly close the gripper
            my_ur10.gripper.apply_action(
                ArticulationAction(joint_positions=[gripper_positions[0] + 0.1])
            )
        if i > 400:
            # Slowly open the gripper
            my_ur10.gripper.apply_action(
                ArticulationAction(joint_positions=[gripper_positions[0] - 0.1])
            )
        if i == 800:
            i = 0

simulation_app.close()

2-2. Code Explanation

SimulationApp Initialization

from isaacsim import SimulationApp
simulation_app = SimulationApp({"headless": False})

All Isaac Sim standalone scripts start by initializing SimulationApp. Setting headless=False displays the GUI.

Import order matters

SimulationApp must be initialized before importing other Isaac Sim modules. This is because the Isaac Sim runtime is set up during SimulationApp initialization.

ParallelGripper Configuration

gripper = ParallelGripper(
    end_effector_prim_path="/ur10e/ee_link/robotiq_140_base_link",
    # If using existing assets:
    # end_effector_prim_path="/ur10e/ee_link/robotiq_arg2f_base_link",
    joint_prim_names=["finger_joint"],
    joint_opened_positions=np.array([0]),
    joint_closed_positions=np.array([40]),
    action_deltas=np.array([-40]),
    use_mimic_joints=True,
)

The ParallelGripper class controls parallel grippers (the type where two fingers open and close simultaneously).

Parameter	Value	Description
end_effector_prim_path	/ur10e/ee_link/robotiq_arg2f_base_link	Prim path of the end-effector
joint_prim_names	["finger_joint"]	Name of the joint to control
joint_opened_positions	[0]	Joint position when the gripper is open
joint_closed_positions	[40]	Joint position when the gripper is closed
action_deltas	[-40]	Delta of joint position change for open/close actions
use_mimic_joints	True	Use mimic joints (moving one finger moves the other in sync)

About joint position values

The values joint_opened_positions=0 and joint_closed_positions=40 are based on the Robotiq 2F-140 gripper's joint range of motion configured in Tutorial 7. Use the values confirmed in Physics Inspector.

Gripper Open/Close Loop

i += 1
gripper_positions = my_ur10.gripper.get_joint_positions()
if i < 400:
    my_ur10.gripper.apply_action(
        ArticulationAction(joint_positions=[gripper_positions[0] + 0.1])
    )
if i > 400:
    my_ur10.gripper.apply_action(
        ArticulationAction(joint_positions=[gripper_positions[0] - 0.1])
    )
if i == 800:
    i = 0

This repeats the following in 800-step cycles:

• Steps 1-400: Add +0.1 to the current joint position each step to close the gripper
• Steps 401-800: Subtract -0.1 from the current joint position each step to open the gripper

By applying small increments each step, the gripper opens and closes slowly and smoothly.

Step 3: Follow Target with Lula Kinematics Solver

Next, learn how to move the end-effector to a target position using Inverse Kinematics (IK).

What is Inverse Kinematics (IK)?

Inverse kinematics is a method of computing joint angles from a desired end-effector position and orientation. Given the goal "move the hand to this position", it calculates the angle each joint should be at.

In this step, you will create 3 files:

• controllers/ik_solver.py — IK solver controller
• tasks/follow_target.py — Follow target task definition
• follow_target_example.py — Execution script

3-1. Creating the IK Solver Controller

Create controllers/ik_solver.py. This controller uses the configuration files generated in Tutorial 8 to solve inverse kinematics.

import os
from typing import Optional

from isaacsim.core.prims import Articulation
from isaacsim.robot_motion.motion_generation import (
    ArticulationKinematicsSolver,
    LulaKinematicsSolver,
)


class KinematicsSolver(ArticulationKinematicsSolver):
    def __init__(
        self,
        robot_articulation: Articulation,
        end_effector_frame_name: Optional[str] = None,
    ) -> None:
        self._kinematics = LulaKinematicsSolver(
            robot_description_path=os.path.join(
                os.path.dirname(__file__), "../rmpflow/ur10e.yaml"
            ),
            urdf_path=os.path.join(
                os.path.dirname(__file__), "../rmpflow/ur_gripper.urdf"
            ),
        )
        if end_effector_frame_name is None:
            end_effector_frame_name = "robotiq_140_base_link"
            # If using existing assets:
            # end_effector_frame_name = "ee_link_robotiq_arg2f_base_link"
        ArticulationKinematicsSolver.__init__(
            self, robot_articulation, self._kinematics, end_effector_frame_name
        )
        return

Key points:

• Passes the paths to ur10e.yaml and ur_gripper.urdf placed in Step 1 to LulaKinematicsSolver
• end_effector_frame_name is the end-effector frame name. It must match a link name in the URDF file (e.g., robotiq_140_base_link). Note that URDF link names may differ from USD prim paths, so check ur_gripper.urdf to confirm

3-2. Creating the Follow Target Task

Create tasks/follow_target.py. This task places the robot and target in the scene and provides observations.

import os
from typing import Optional

import isaacsim.core.api.tasks as tasks
import numpy as np
from isaacsim.core.utils.stage import add_reference_to_stage
from isaacsim.robot.manipulators.grippers import ParallelGripper
from isaacsim.robot.manipulators.manipulators import SingleManipulator


class FollowTarget(tasks.FollowTarget):
    def __init__(
        self,
        name: str = "ur10e_follow_target",
        target_prim_path: Optional[str] = None,
        target_name: Optional[str] = None,
        target_position: Optional[np.ndarray] = None,
        target_orientation: Optional[np.ndarray] = None,
        offset: Optional[np.ndarray] = None,
    ) -> None:
        tasks.FollowTarget.__init__(
            self,
            name=name,
            target_prim_path=target_prim_path,
            target_name=target_name,
            target_position=target_position,
            target_orientation=target_orientation,
            offset=offset,
        )
        return

    def set_robot(self) -> SingleManipulator:
        # Reference ur_gripper.usd in the parent directory (project root) of tasks/
        asset_path = os.path.join(os.path.dirname(__file__), "..", "ur_gripper.usd")
        add_reference_to_stage(usd_path=asset_path, prim_path="/ur10e")

        gripper = ParallelGripper(
            end_effector_prim_path="/ur10e/ee_link/robotiq_140_base_link",
            # If using existing assets:
            # end_effector_prim_path="/ur10e/ee_link/robotiq_arg2f_base_link",
            joint_prim_names=["finger_joint"],
            joint_opened_positions=np.array([0]),
            joint_closed_positions=np.array([40]),
            action_deltas=np.array([-40]),
            use_mimic_joints=True,
        )

        manipulator = SingleManipulator(
            prim_path="/ur10e",
            name="ur10_robot",
            end_effector_prim_path="/ur10e/ee_link/robotiq_140_base_link",
            # If using existing assets:
            # end_effector_prim_path="/ur10e/ee_link/robotiq_arg2f_base_link",
            gripper=gripper,
        )
        return manipulator

Key points:

• Inherits from the Isaac Sim base class tasks.FollowTarget
• The set_robot() method initializes the robot. The base class calls this method to add the robot to the scene
• Gripper configuration is the same as Step 2

3-3. Creating the Follow Target Script

Create follow_target_example.py:

from isaacsim import SimulationApp

simulation_app = SimulationApp({"headless": False})

import numpy as np
from controllers.ik_solver import KinematicsSolver
from isaacsim.core.api import World
from tasks.follow_target import FollowTarget

my_world = World(stage_units_in_meters=1.0)

# Initialize follow target task (specify initial target position)
my_task = FollowTarget(
    name="ur10e_follow_target",
    target_position=np.array([0.5, 0, 0.5]),
)
my_world.add_task(my_task)
my_world.reset()

# Get robot and target information from the task
task_params = my_world.get_task("ur10e_follow_target").get_params()
target_name = task_params["target_name"]["value"]
ur10e_name = task_params["robot_name"]["value"]
my_ur10e = my_world.scene.get_object(ur10e_name)

# Initialize IK solver
ik_solver = KinematicsSolver(my_ur10e)
articulation_controller = my_ur10e.get_articulation_controller()

# Simulation loop
while simulation_app.is_running():
    my_world.step(render=True)
    if my_world.is_playing():
        if my_world.current_time_step_index == 0:
            my_world.reset()

        # Observe target position and orientation
        observations = my_world.get_observations()

        # Compute joint angles with IK solver
        actions, succ = ik_solver.compute_inverse_kinematics(
            target_position=observations[target_name]["position"],
            target_orientation=observations[target_name]["orientation"],
        )

        if succ:
            articulation_controller.apply_action(actions)
        else:
            print("IK did not converge to a solution.  No action is being taken.")

simulation_app.close()

Processing Flow

1. Initialize world and task: Create a World and add a FollowTarget task. Set the target initial position to [0.5, 0, 0.5].

2. Initialize IK solver: Create a KinematicsSolver and get the robot's articulation controller.

3. Simulation loop: Each step executes the following:

   • Observe the target's current position and orientation
   • Compute joint angles to reach the target position using the IK solver
   • If computation succeeds, apply joint angles to the robot

Move the target during simulation

While the simulation is running, you can drag the target (a small cube) in the viewport to move it. Observe how the end-effector follows the target in real time.

Step 4: Follow Target with RMPFlow

The IK solver can reach target positions, but does not generate smooth motions considering obstacle avoidance or joint limits. RMPFlow (Riemannian Motion Policy Flow) is a motion planning framework that handles these in an integrated manner.

What is RMPFlow?

RMPFlow is a motion planning algorithm that integrates multiple control objectives (reaching a target, obstacle avoidance, joint limit compliance, etc.) within a Riemannian geometry framework. Each objective is defined as an independent "policy", and they are automatically composed to generate smooth motion.

In this step, you will create 3 files:

• rmpflow/ur10e_rmpflow_common.yaml — RMPFlow configuration file
• controllers/rmpflow.py — RMPFlow controller
• follow_target_example_rmpflow.py — Execution script

4-1. Creating the RMPFlow Configuration File

Create rmpflow/ur10e_rmpflow_common.yaml. This file defines the motion policy parameters for RMPFlow:

joint_limit_buffers: [.01, .01, .01, .01, .01, .01]
rmp_params:
    cspace_target_rmp:
        metric_scalar: 50.
        position_gain: 100.
        damping_gain: 50.
        robust_position_term_thresh: .5
        inertia: 1.
    cspace_trajectory_rmp:
        p_gain: 100.
        d_gain: 10.
        ff_gain: .25
        weight: 50.
    cspace_affine_rmp:
        final_handover_time_std_dev: .25
        weight: 2000.
    joint_limit_rmp:
        metric_scalar: 1000.
        metric_length_scale: .01
        metric_exploder_eps: 1e-3
        metric_velocity_gate_length_scale: .01
        accel_damper_gain: 200.
        accel_potential_gain: 1.
        accel_potential_exploder_length_scale: .1
        accel_potential_exploder_eps: 1e-2
    joint_velocity_cap_rmp:
        max_velocity: 1.
        velocity_damping_region: .3
        damping_gain: 1000.0
        metric_weight: 100.
    target_rmp:
        accel_p_gain: 30.
        accel_d_gain: 85.
        accel_norm_eps: .075
        metric_alpha_length_scale: .05
        min_metric_alpha: .01
        max_metric_scalar: 10000
        min_metric_scalar: 2500
        proximity_metric_boost_scalar: 20.
        proximity_metric_boost_length_scale: .02
        xi_estimator_gate_std_dev: 20000.
        accept_user_weights: false
    axis_target_rmp:
        accel_p_gain: 210.
        accel_d_gain: 60.
        metric_scalar: 10
        proximity_metric_boost_scalar: 3000.
        proximity_metric_boost_length_scale: .08
        xi_estimator_gate_std_dev: 20000.
        accept_user_weights: false
    collision_rmp:
        damping_gain: 50.
        damping_std_dev: .04
        damping_robustness_eps: 1e-2
        damping_velocity_gate_length_scale: .01
        repulsion_gain: 800.
        repulsion_std_dev: .01
        metric_modulation_radius: .5
        metric_scalar: 10000.
        metric_exploder_std_dev: .02
        metric_exploder_eps: .001
    damping_rmp:
        accel_d_gain: 30.
        metric_scalar: 50.
        inertia: 100.
canonical_resolve:
    max_acceleration_norm: 50.
    projection_tolerance: .01
    verbose: false
body_cylinders:
    - name: base
      pt1: [0,0,.10]
      pt2: [0,0,0.]
      radius: .2
body_collision_controllers:
    - name: robotiq_140_base_link
      radius: .05

Key parameters:

Section	Description
joint_limit_buffers	Buffer values for each joint's limits (adds a small margin from the limit values)
cspace_target_rmp	Gains for target following in configuration space
joint_limit_rmp	RMP parameters to prevent exceeding joint limits
joint_velocity_cap_rmp	Parameters controlling joint velocity upper limits (max_velocity: 1.)
target_rmp	Target following parameters in task space (end-effector position)
collision_rmp	Parameters for obstacle avoidance (repulsion force controlled by repulsion_gain)
body_cylinders	Collision shape approximating the robot base as a cylinder
body_collision_controllers	Collision radius for the end-effector

Parameter tuning

Most parameters work well with default values. If the robot moves too slowly or too fast, try adjusting accel_p_gain and accel_d_gain in target_rmp, or max_velocity in joint_velocity_cap_rmp.

4-2. Creating the RMPFlow Controller

Create controllers/rmpflow.py:

import os

import isaacsim.robot_motion.motion_generation as mg
from isaacsim.core.prims import Articulation


class RMPFlowController(mg.MotionPolicyController):
    def __init__(
        self,
        name: str,
        robot_articulation: Articulation,
        physics_dt: float = 1.0 / 60.0,
    ) -> None:
        # Initialize RMPFlow motion policy
        self.rmpflow = mg.lula.motion_policies.RmpFlow(
            robot_description_path=os.path.join(
                os.path.dirname(__file__), "../rmpflow/ur10e.yaml"
            ),
            rmpflow_config_path=os.path.join(
                os.path.dirname(__file__), "../rmpflow/ur10e_rmpflow_common.yaml"
            ),
            urdf_path=os.path.join(
                os.path.dirname(__file__), "../rmpflow/ur_gripper.urdf"
            ),
            end_effector_frame_name="robotiq_140_base_link",
            maximum_substep_size=0.00334,
        )

        # Wrap with ArticulationMotionPolicy
        self.articulation_rmp = mg.ArticulationMotionPolicy(
            robot_articulation, self.rmpflow, physics_dt
        )

        mg.MotionPolicyController.__init__(
            self, name=name, articulation_motion_policy=self.articulation_rmp
        )

        # Set robot base pose
        self._default_position, self._default_orientation = (
            self._articulation_motion_policy._robot_articulation.get_world_pose()
        )
        self._motion_policy.set_robot_base_pose(
            robot_position=self._default_position,
            robot_orientation=self._default_orientation,
        )
        return

    def reset(self):
        mg.MotionPolicyController.reset(self)
        self._motion_policy.set_robot_base_pose(
            robot_position=self._default_position,
            robot_orientation=self._default_orientation,
        )

Key points:

Element	Description
RmpFlow(...)	Loads configuration files generated in Tutorial 8 and the YAML configuration created above
maximum_substep_size	Maximum time step size (seconds) for RMPFlow internal substeps. Smaller values increase accuracy but also computation cost
ArticulationMotionPolicy	Wrapper that connects the RmpFlow policy to the articulation (robot joint group)
set_robot_base_pose(...)	Sets the robot's base position and orientation. Important when the robot is placed at a non-origin position

4-3. Creating the RMPFlow Follow Target Script

Create follow_target_example_rmpflow.py:

from isaacsim import SimulationApp

simulation_app = SimulationApp({"headless": False})

import numpy as np
from controllers.rmpflow import RMPFlowController
from isaacsim.core.api import World
from tasks.follow_target import FollowTarget

my_world = World(stage_units_in_meters=1.0)

# Initialize follow target task
my_task = FollowTarget(
    name="ur10e_follow_target",
    target_position=np.array([0.5, 0, 0.5]),
)
my_world.add_task(my_task)
my_world.reset()

task_params = my_world.get_task("ur10e_follow_target").get_params()
target_name = task_params["target_name"]["value"]
ur10e_name = task_params["robot_name"]["value"]
my_ur10e = my_world.scene.get_object(ur10e_name)
articulation_controller = my_ur10e.get_articulation_controller()

# Initialize RMPFlow controller
my_controller = RMPFlowController(
    name="target_follower_controller",
    robot_articulation=my_ur10e,
)
my_controller.reset()

# Simulation loop
while simulation_app.is_running():
    my_world.step(render=True)
    if my_world.is_playing():
        if my_world.current_time_step_index == 0:
            my_world.reset()
            my_controller.reset()

        observations = my_world.get_observations()

        # Compute actions with RMPFlow
        actions = my_controller.forward(
            target_end_effector_position=observations[target_name]["position"],
            target_end_effector_orientation=observations[target_name]["orientation"],
        )
        articulation_controller.apply_action(actions)

simulation_app.close()

4-4. Differences from IK Solver

Aspect	IK Solver (Step 3)	RMPFlow (Step 4)
Computation method	Directly computes joint angles via inverse kinematics	Generates velocity commands via motion policy
Obstacle avoidance	None	Yes (configured via collision_rmp)
Joint limits	Basic limits only	Buffered limits (joint_limit_rmp)
Motion smoothness	Instantaneous movement to target angles	Smooth trajectory to reach the target
Convergence failure	May fail to find a solution	Always outputs actions (safely stops if unreachable)

Step 5: Basic Pick and Place Task

Finally, combine everything to implement a task that grasps an object (pick) and places it at another location (place).

In this step, you will create 3 files:

• controllers/pick_place.py — Pick and place controller
• tasks/pick_place.py — Pick and place task definition
• pick_place_example.py — Execution script

5-1. Creating the Pick and Place Controller

Create controllers/pick_place.py. This controller combines the RMPFlowController created in Step 4 with gripper control to automatically execute the pick and place sequence.

import isaacsim.robot.manipulators.controllers as manipulators_controllers
from isaacsim.core.prims import SingleArticulation
from isaacsim.robot.manipulators.grippers import ParallelGripper

from .rmpflow import RMPFlowController


class PickPlaceController(manipulators_controllers.PickPlaceController):
    def __init__(
        self,
        name: str,
        gripper: ParallelGripper,
        robot_articulation: SingleArticulation,
        events_dt=None,
    ) -> None:
        if events_dt is None:
            events_dt = [0.005, 0.002, 1, 0.05, 0.0008, 0.005, 0.0008, 0.1, 0.0008, 0.008]
        manipulators_controllers.PickPlaceController.__init__(
            self,
            name=name,
            cspace_controller=RMPFlowController(
                name=name + "_cspace_controller",
                robot_articulation=robot_articulation,
            ),
            gripper=gripper,
            events_dt=events_dt,
            end_effector_initial_height=0.6,
        )
        return

Key points:

• cspace_controller: Uses the RMPFlowController created in Step 4 as the motion control engine
• events_dt: An array controlling the time allocation for each phase of the pick and place sequence:

Index	Phase	Description
0	Move above object	Move end-effector above the pick position
1	Descend	Lower to the pick position
2	Close gripper	Grasp the object
3	Ascend	Lift the object
4	Move above place position	Move above the place position
5	Descend	Lower to the place position
6	Open gripper	Release the object
7-9	Retreat	Retreat end-effector to a safe position

• end_effector_initial_height: Initial height of the end-effector (0.6 meters). Maintains this height during movement.

5-2. Creating the Pick and Place Task

Create tasks/pick_place.py:

import os
from typing import Optional

import isaacsim.core.api.tasks as tasks
import numpy as np
from isaacsim.core.utils.stage import add_reference_to_stage
from isaacsim.robot.manipulators.grippers import ParallelGripper
from isaacsim.robot.manipulators.manipulators import SingleManipulator


class PickPlace(tasks.PickPlace):
    def __init__(
        self,
        name: str = "ur10e_pick_place",
        cube_initial_position: Optional[np.ndarray] = None,
        cube_initial_orientation: Optional[np.ndarray] = None,
        target_position: Optional[np.ndarray] = None,
        offset: Optional[np.ndarray] = None,
        cube_size: Optional[np.ndarray] = np.array([0.0515, 0.0515, 0.0515]),
    ) -> None:
        tasks.PickPlace.__init__(
            self,
            name=name,
            cube_initial_position=cube_initial_position,
            cube_initial_orientation=cube_initial_orientation,
            target_position=target_position,
            cube_size=cube_size,
            offset=offset,
        )
        return

    def set_robot(self) -> SingleManipulator:
        asset_path = os.path.join(os.path.dirname(__file__), "..", "ur_gripper.usd")
        add_reference_to_stage(usd_path=asset_path, prim_path="/ur10e")

        gripper = ParallelGripper(
            end_effector_prim_path="/ur10e/ee_link/robotiq_140_base_link",
            # If using existing assets:
            # end_effector_prim_path="/ur10e/ee_link/robotiq_arg2f_base_link",
            joint_prim_names=["finger_joint"],
            joint_opened_positions=np.array([0]),
            joint_closed_positions=np.array([40]),
            action_deltas=np.array([-40]),
            use_mimic_joints=True,
        )

        manipulator = SingleManipulator(
            prim_path="/ur10e",
            name="ur10_robot",
            end_effector_prim_path="/ur10e/ee_link/robotiq_140_base_link",
            # If using existing assets:
            # end_effector_prim_path="/ur10e/ee_link/robotiq_arg2f_base_link",
            gripper=gripper,
            position=np.array([0, 0, 0.5]),
        )
        return manipulator

• cube_size defaults to [0.0515, 0.0515, 0.0515] (approximately 5cm cube)
• The task automatically places a cube and target position marker in the scene

5-3. Creating the Pick and Place Script

Create pick_place_example.py:

from isaacsim import SimulationApp

simulation_app = SimulationApp({"headless": False})

import numpy as np
from controllers.pick_place import PickPlaceController
from isaacsim.core.api import World
from tasks.pick_place import PickPlace

# Initialize world (physics at 200Hz, rendering at 10Hz)
my_world = World(
    stage_units_in_meters=1.0,
    physics_dt=1 / 200,
    rendering_dt=20 / 200,
)

# Set target position
target_position = np.array([-0.3, 0.6, 0])
target_position[2] = 0.0515 / 2.0  # Set Z coordinate to half the cube height

# Initialize pick and place task
my_task = PickPlace(
    name="ur10e_pick_place",
    cube_initial_position=np.array([0.6, 0.3, 0.0515 / 2.0]),
    target_position=target_position,
    cube_size=np.array([0.0515, 0.0515, 0.1]),
)
my_world.add_task(my_task)
my_world.reset()

# Initialize robot and controller
task_params = my_world.get_task("ur10e_pick_place").get_params()
ur10e_name = task_params["robot_name"]["value"]
my_ur10e = my_world.scene.get_object(ur10e_name)

my_controller = PickPlaceController(
    name="controller",
    robot_articulation=my_ur10e,
    gripper=my_ur10e.gripper,
)
articulation_controller = my_ur10e.get_articulation_controller()

reset_needed = False

# Simulation loop
while simulation_app.is_running():
    my_world.step(render=True)
    if my_world.is_playing():
        if reset_needed:
            my_world.reset()
            reset_needed = False
            my_controller.reset()
        if my_world.current_time_step_index == 0:
            my_controller.reset()

        observations = my_world.get_observations()

        # Pass observations to pick and place controller to compute actions
        actions = my_controller.forward(
            picking_position=observations[task_params["cube_name"]["value"]]["position"],
            placing_position=observations[task_params["cube_name"]["value"]]["target_position"],
            current_joint_positions=observations[task_params["robot_name"]["value"]][
                "joint_positions"
            ],
            end_effector_offset=np.array([0, 0, 0.20]),
        )

        if my_controller.is_done():
            print("done picking and placing")

        articulation_controller.apply_action(actions)

    if my_world.is_stopped():
        reset_needed = True

simulation_app.close()

5-4. Key Parameter Explanation

World Settings

my_world = World(
    stage_units_in_meters=1.0,
    physics_dt=1 / 200,
    rendering_dt=20 / 200,
)

Parameter	Value	Description
physics_dt	1/200 (5ms)	Physics simulation timestep. Runs physics at 200Hz
rendering_dt	20/200 (100ms)	Rendering timestep. Renders at 10Hz

By running physics simulation at high frequency (200Hz) while setting rendering to low frequency (10Hz), simulation accuracy is maintained while reducing computational load.

Cube Size

cube_size=np.array([0.1, 0.0515, 0.1])

Sets the cube size to [X, Y, Z] = [0.1, 0.0515, 0.1] meters. Making the Y direction thin creates a shape that is easier for the gripper to grasp.

End-Effector Offset

end_effector_offset=np.array([0, 0, 0.20])

The end-effector offset compensates for the displacement from the end-effector coordinate frame origin to the gripper's grasp point. A 0.20m offset is set in the Z direction.

Tuning end_effector_offset is important

The end_effector_offset value depends on the gripper geometry and cube size. If grasping fails, adjust this value. If too large, grasping will be attempted above the cube; if too small, the gripper will collide with the cube.

5-5. Running and Verifying

When the script is run, the following sequence of actions is automatically executed:

1. End-effector moves above the cube
2. Descends to the cube position
3. Gripper closes to grasp the cube
4. Lifts the cube
5. Moves above the target position
6. Descends to the target position
7. Gripper opens to release the cube
8. End-effector retreats

When all actions are complete, done picking and placing is printed to the console.

Advanced: More Sophisticated Implementations

The pick and place implementation in this tutorial is basic. It has the following limitations:

• Object positions are obtained directly from the simulator, so it cannot be directly applied to real robots
• Task configuration is limited to cube geometry

For real-world applications and more advanced manipulation tasks, refer to the Isaac Manipulator documentation. It provides production-level pick and place implementations combined with Foundation Pose for object detection.

Summary

This tutorial covered the following topics:

1. Project Setup: Directory structure and configuration file placement for your own project
2. Gripper Control: Gripper open/close control using the ParallelGripper class
3. Follow Target with IK Solver: End-effector position control using inverse kinematics with LulaKinematicsSolver
4. Follow Target with RMPFlow: Smooth motion generation using RMPFlowController integrating obstacle avoidance and joint limits
5. Pick and Place Task: Object manipulation combining RMPFlow and gripper control

Reference Documentation

• Pick and Place Example (Official Documentation)
• Motion Generation (Official Documentation)

Next Steps

Proceed to the next tutorial, "Rig Closed-Loop Structures", to learn advanced robot rigging techniques.
